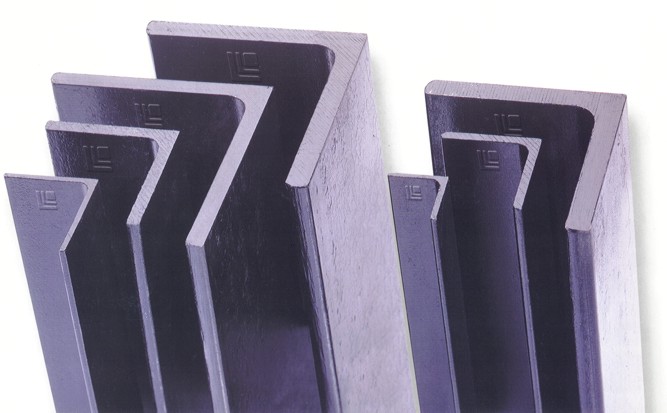

EŞKENAR KÖŞEBENT DEMİRLERİ
Eşitkenar Köşebent ebatları ve metrik ağırlıkları
Equal Angles sizes & metric weights
| TS 908 |  |
| DIN 1028 | |
| EN 10056 | |
| ASTM A6 Table a 2.7 | |
| JIS G 3192 |
| 2,3 | 3,0 | 4,0 | 5,0 | 6,0 | 7,0 | 8,0 | 9,0 | 10,0 | 11,0 | 12,0 | 13,0 | 14,0 | 15,0 | 16,0 | 18,0 | |
| 20*20 | 0,69 | 0,88 | 1,14 | |||||||||||||
| 25*25 | 0,87 | 1,11 | 1,45 | 1,77 | ||||||||||||
| 30*30 | 1,07 | 1,36 | 1,78 | 2,18 | ||||||||||||
| 35*35 | 1,25 | 1,60 | 2,09 | 2,57 | 3,04 | |||||||||||
| 38*38 | 1,36 | 1,74 | 2,28 | 2,81 | 3,33 | |||||||||||
| 40*40 | 1,43 | 1,84 | 2,42 | 2,97 | 3,52 | |||||||||||
| 45*45 | 2,09 | 2,74 | 3,38 | 4,00 | 4,60 | |||||||||||
| 50*50 | 2,33 | 3,06 | 3,77 | 4,47 | 5,15 | 5,82 | 6,47 | |||||||||
| 55*55 | 3,38 | 4,18 | 4,95 | 5,70 | 6,46 | 7,18 | 7,90 | |||||||||
| 60*60 | 3,70 | 4,57 | 5,42 | 6,26 | 7,09 | 7,90 | 6,89 | |||||||||
| 63,5*63,5 | 3,93 | 4,84 | 5,75 | 6,65 | 7,54 | 8,41 | 6,26 | |||||||||
| 65*65 | 4,02 | 4,97 | 5,91 | 6,83 | 7,73 | 8,62 | 9,49 | 10,30 | ||||||||
| 70*70 | 4,34 | 5,37 | 6,38 | 7,38 | 8,36 | 9,34 | 10,30 | 11,20 | ||||||||
| 75*75 | 5,77 | 6,87 | 7,94 | 9,03 | 10,04 | 11,10 | 12,07 | 13,10 | ||||||||
| 80*80 | 7,34 | 8,49 | 9,63 | 10,75 | 11,90 | 12,95 | 14,03 | |||||||||
| 90*90 | 8,30 | 9,60 | 10,90 | 12,20 | 13,40 | 14,70 | 15,93 | |||||||||
| 100*100 | 10,72 | 12,18 | 13,60 | 15,00 | 16,44 | 17,80 | ||||||||||
| 110*110 | 11,82 | 13,50 | 14,80 | 16,60 | 18,15 | 19,70 | ||||||||||
| 120*120 | 14,70 | 16,50 | 18,20 | 19,90 | 21,60 | 23,30 | 25,00 | 26,60 | ||||||||
| 125*125 | 15,34 | 17,17 | 19,00 | 20,08 | 22,60 | 24,35 | 26,10 | 27,84 | 29,60 | |||||||
| 130*130 | 16,00 | 17,90 | 19,80 | 21,70 | 23,60 | 25,40 | 27,20 | 29,10 | 30,90 | |||||||
| 140*140 | 21,39 | 23,42 | 25,44 | 27,44 | 29,42 | 31,39 | 33,35 | 37,21 | ||||||||
| 150*150 | 22,98 | 25,17 | 27,35 | 29,50 | 31,65 | 33,77 | 35,89 | 40,06 |
